Inspection Tools & Precision Gauges
Leveraging on our vast experience of almost two decades we are one of the reputed and well known supplier and manufacturer of a wide range of Precision Tools such as Gauges, Spline Gauges, Spline Ring Gauges, Plug Gauges, Involute Spline Gauges.

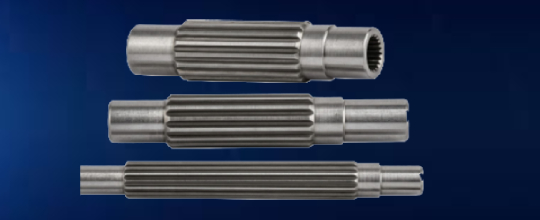

Spline Mandrels
Spline Mandrels are used to locate the splined components on pcd of splines or on the major diameter of internal straight sided splines or involute splines. The component has to be located in this manner to check the component accuracies like face run out, od run out with respect to pcd/major dia. Spline Mandrels are also used to carry out finish machining operations with respect to pcd/major dia.
Spline Plug Gauges
Spline Plug Gauges are used to check the effective space width, form diameter, major diameter, minor diameter etc.,..A set of 'GO' and 'NO-GO' gauges are used to check the acceptance of the component.

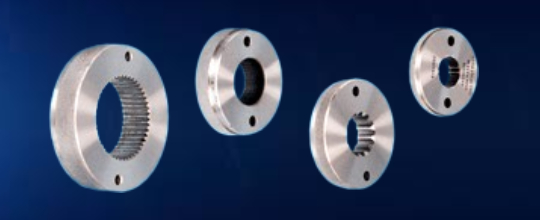

Spline Ring Guage
Spline Ring Gauges are used to check the effective tooth thickness, form diameter etc., of the splined shaft conformance to dimensional specifications assures the desired fit and interchangeablity. The basic principles are applicable to all types of splines. Checking each individual part parameters like profile accuracy, index error, lead error and pcd run out on a production line is tedious and time consuming. A set of 'go' and 'no-go' spline gauges will check all these parameters and decide the acceptance of the component.
Quenching Plug
Quenching Plugs are used to minimized heat treatment distortion on thinwalled compent like synchromesh sleeves during heat treatment.
